TIRx 与高性能GEMM (下)

既然已经有了 TMA 和双缓冲，为什么还说没有真正 overlap？原因是当前代码仍由一个 warpgroup 顺序推进 load、MMA 和 store。它具备了 overlap 所需的物理结构，但还没有把不同角色分给不同 warpgroup。本章的 warp specialization 会把 producer、MMA consumer、writeback 等角色拆开，让 TMA load 和 Tensor Core compute 在时间上真正重叠。

因此，这章更像是从“正确 kernel”到“可优化 kernel”的结构重建。它把数据搬运从线程指令流中解耦出来，把 SMEM 从单缓冲变成可复用 stage ring，把 CTA 从一次性 worker 变成长生命周期 worker。没有这些结构，后续再谈 warp specialization 和 cluster 只会让状态空间爆炸；有了这些结构，下一步优化才有明确落点。

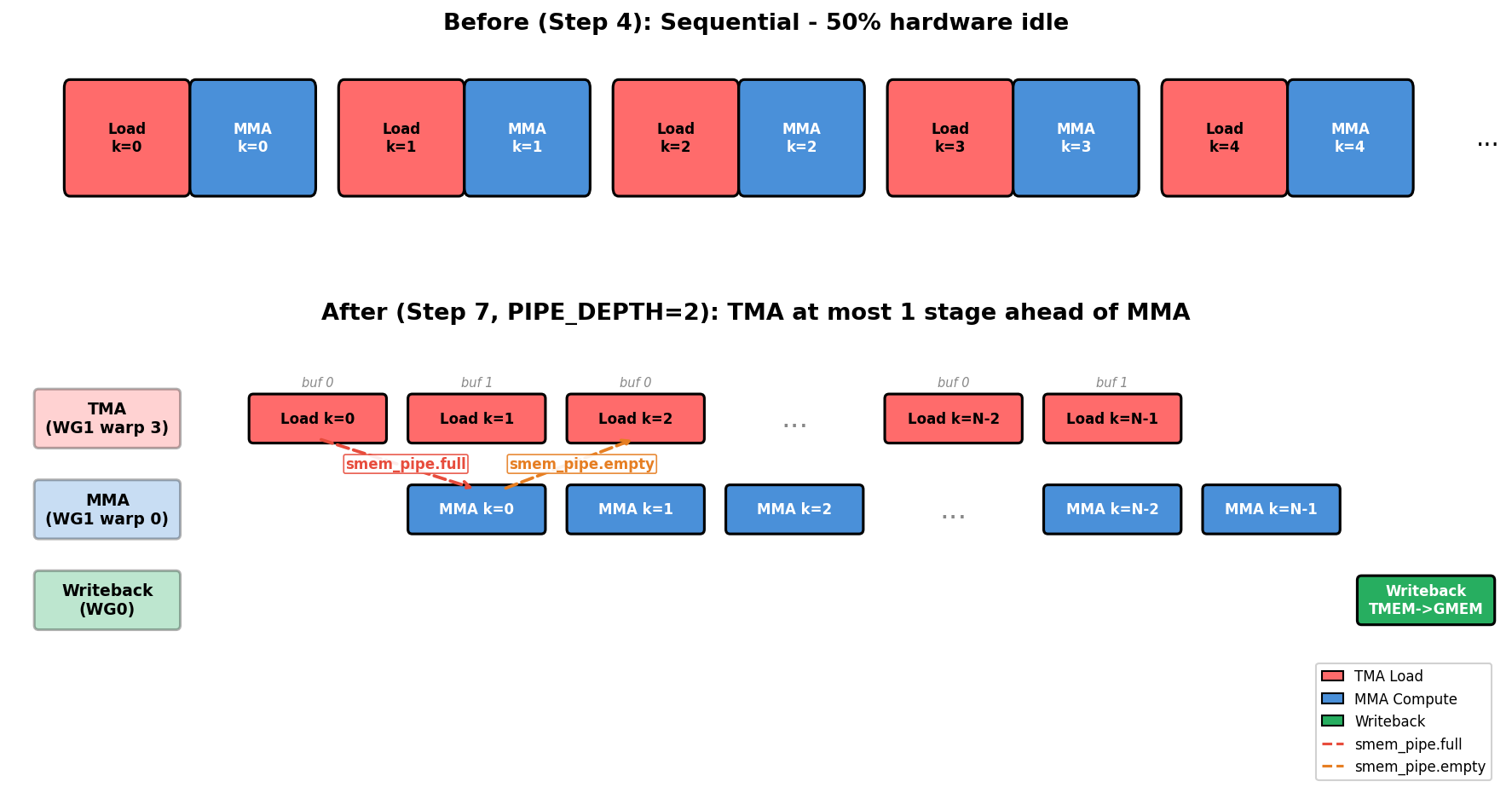

step7: warp specialization 和流水线化

TMA 已经能把 global memory 到 shared memory 的搬运从普通线程 load 中解耦出来，但这并不自动等于 load、MMA 和 store 已经重叠。如果同一组线程仍然按顺序推进“发 TMA、等 TMA、做 MMA、读 TMEM、写回”，那么 kernel 只是具备了异步能力，时间线上仍然像串行状态机。

Step 7 的关键改变，是把角色拆开：TMA producer 负责把下一批 A/B tile 搬进 SMEM，MMA consumer 负责从 SMEM 读数据并向 TMEM 累加，writeback warpgroup 负责把 TMEM 结果搬回寄存器、转换类型，再写到 D。这样一来，producer 可以准备下一轮数据，consumer 可以消耗上一轮数据，writeback 可以收尾更早完成的输出 tile。

同步器	含义	保护的资源
tma2mma	TMA 已经把当前 stage 搬完，MMA 可以读取 SMEM	SMEM 输入 tile 的可见性
mma2tma	MMA 已经消费当前 stage，TMA 可以复用这块 SMEM	SMEM stage 的生命周期
mma2ld	MMA 已经完成输出累加，writeback 可以读取 TMEM	TMEM accumulator 的读时机
ld2mma	writeback 已经读完 TMEM，下一轮 MMA 可以复用 TMEM	TMEM accumulator 的复用时机

这里的难点不是多放几个 barrier，而是每个 barrier 都对应一个资源生命周期。PipelineState 中的 stage 和 phase 用来描述双缓冲 ring 当前走到哪里；如果 phase 初始化错了，producer 和 consumer 可能都在等待对方先到达，最终表现为死锁。Tirx 中引入了PipelineState来专门管理stage和phase，从而避免手动管理带来的易错性。

tma_ps = PipelineState(PIPE_DEPTH, phase=1)   # Producer starts ready (phase=1)
# tma_ps.stage = current stage index
# tma_ps.phase = current phase (0 or 1)
tma_ps.advance()                          # Advance to next stage

writeback 阶段有一个容易忽略的同步问题：Warpgroup 0 的 128 个线程会先把各自负责的寄存器片段写入 Dsmem，然后由一个线程发起 TMA store。此时不能使用 cta_sync()，因为其他 warpgroup 正在执行 producer 或 MMA consumer 分支，它们不会到达这个同步点，使用 CTA 级同步会直接死锁。

T.cuda.warpgroup_sync(10) 会降到 PTX 的命名 barrier，同一个 CTA 里有编号 0 到 15 的 barrier slot。数字 10 不是 warpgroup id，而是同步槽位 id；之所以同步的是 Warpgroup 0，是因为只有 Warpgroup 0 的 128 个线程会执行到这行代码。Step 9 有两个 writeback warpgroup，所以会用 wg_id + 10 分配到 10 和 11，避免两个独立同步混在同一个计数器里。

完成kernel：

SM_COUNT = 148  # Number of SMs on NVIDIA B200 GPU
F16_SIZE = 2

def hgemm_v7(M, N, K):
    a_type = tvm.DataType("float16")
    b_type = tvm.DataType("float16")
    d_type = tvm.DataType("float16")
    acc_type = tvm.DataType("float32")

    BLK_M, BLK_N, BLK_K = 128, 128, 64
    K_TILES = K // BLK_K
    PIPE_DEPTH = 2
    WG_NUMBER = 2

    A_layout = mma_shared_layout(a_type, SwizzleMode.SWIZZLE_128B_ATOM, (PIPE_DEPTH, BLK_M, BLK_K))
    B_layout = mma_shared_layout(b_type, SwizzleMode.SWIZZLE_128B_ATOM, (PIPE_DEPTH, BLK_N, BLK_K))
    D_layout = mma_shared_layout(d_type, SwizzleMode.SWIZZLE_128B_ATOM, (BLK_M, BLK_N))

    @T.prim_func
    def kernel(
        A: T.Buffer((M, K), a_type),
        B: T.Buffer((N, K), b_type),
        D: T.Buffer((M, N), d_type),
    ):
        T.device_entry()
        bx = T.cta_id([SM_COUNT])
        wg_id = T.warpgroup_id([WG_NUMBER])
        warp_id = T.warp_id_in_wg([4])
        lane_id = T.lane_id([32])

        # --- Allocation ---
        pool = T.SMEMPool()
        tmem_addr = pool.alloc((1,), "uint32")
        tma2mma = TMABar(pool, PIPE_DEPTH)
        mma2tma = TCGen05Bar(pool, PIPE_DEPTH)
        mma2ld  = TCGen05Bar(pool, 1)
        ld2mma  = MBarrier(pool, 1)
        pool.move_base_to(1024)
        Asmem = pool.alloc((PIPE_DEPTH, BLK_M, BLK_K), a_type, layout=A_layout)
        Bsmem = pool.alloc((PIPE_DEPTH, BLK_N, BLK_K), b_type, layout=B_layout)
        Dsmem = pool.alloc((BLK_M, BLK_N), d_type, layout=D_layout)

        # --- Barrier init ---
        tma2mma.init(1)
        mma2tma.init(1)
        mma2ld.init(1)
        ld2mma.init(128)   # all 128 Warpgroup 0 threads arrive
        pool.commit()

        # --- TMEM alloc + fence ---
        if wg_id == 0:
            if warp_id == 0:
                T.ptx.tcgen05.alloc(T.address_of(tmem_addr), n_cols=512, cta_group=1)
        T.ptx.fence.proxy_async("shared::cta")
        T.ptx.fence.mbarrier_init()
        T.cuda.cta_sync()

        tmem = T.decl_buffer(
            (128, 512), acc_type, scope="tmem", allocated_addr=tmem_addr[0],
            layout=TileLayout(S[(128, 512) : (1@TLane, 1@TCol)]))

        # --- Tile scheduler ---
        tile_scheduler = ClusterPersistentScheduler2D(
            "ts", num_m_tiles=M // BLK_M, num_n_tiles=N // BLK_N,
            l2_group_size=8, num_clusters=SM_COUNT)
        tile_scheduler.init(bx)
        m_st = T.meta_var(tile_scheduler.m_idx * BLK_M)
        n_st = T.meta_var(tile_scheduler.n_idx * BLK_N)

        # =============================================
        # Warpgroup 1: TMA Producer (warp 3) + MMA Consumer (warp 0)
        # =============================================
        if wg_id == 1:
            if warp_id == 3:
                # === TMA Producer ===
                tma_ps = PipelineState(PIPE_DEPTH, phase=1)

                @T.inline
                def tma_load(k_offset):
                    Tx.copy_async(Asmem[tma_ps.stage, :, :],
                                  A[m_st:m_st+BLK_M, k_offset:k_offset+BLK_K],
                                  dispatch="tma_auto", cta_group=1,
                                  mbar=tma2mma.ptr_to([tma_ps.stage]))
                    Tx.copy_async(Bsmem[tma_ps.stage, :, :],
                                  B[n_st:n_st+BLK_N, k_offset:k_offset+BLK_K],
                                  dispatch="tma_auto", cta_group=1,
                                  mbar=tma2mma.ptr_to([tma_ps.stage]))

                if T.filter(lane_id, T.ptx.elect_sync()):
                    while tile_scheduler.valid():
                        for k in range(K_TILES):
                            mma2tma.wait(tma_ps.stage, tma_ps.phase)
                            tma_load(k * BLK_K)
                            tma2mma.arrive(tma_ps.stage,
                                           (BLK_M * BLK_K + BLK_N * BLK_K) * F16_SIZE)
                            tma_ps.advance()
                        tile_scheduler.next_tile()

            elif warp_id == 0:
                # === MMA Consumer ===
                mma_ps = PipelineState(PIPE_DEPTH, phase=0)
                ld_ps = PipelineState(1, phase=1)

                if T.filter(lane_id, T.ptx.elect_sync()):
                    while tile_scheduler.valid():
                        # Wait for TMEM to be free from previous tile's writeback
                        ld2mma.wait(ld_ps.stage, ld_ps.phase)
                        ld_ps.advance()

                        for k in range(K_TILES):
                            tma2mma.wait(mma_ps.stage, mma_ps.phase)
                            Tx.gemm_async(
                                tmem[:, :BLK_N],
                                Asmem[mma_ps.stage, :, :],
                                Bsmem[mma_ps.stage, :, :],
                                accum=(k != 0), dispatch="tcgen05", cta_group=1)
                            mma2tma.arrive(mma_ps.stage, cta_group=1, cta_mask=0)
                            mma_ps.advance()

                        # Signal results ready for writeback
                        mma2ld.arrive(0, cta_group=1, cta_mask=0)
                        tile_scheduler.next_tile()

        # =============================================
        # Warpgroup 0: Writeback
        # =============================================
        elif wg_id == 0:
            wb_ps = PipelineState(1, phase=0)
            reg_f16 = T.alloc_local((BLK_N,), d_type)

            while tile_scheduler.valid():
                # Wait for MMA results
                mma2ld.wait(wb_ps.stage, wb_ps.phase)
                wb_ps.advance()
                T.ptx.tcgen05.fence.after_thread_sync()

                # Read TMEM -> registers (warpgroup scope)
                reg = T.alloc_local((BLK_N,), acc_type)
                reg_wg = reg.view(128, BLK_N,
                    layout=TileLayout(S[(128, BLK_N) : (1@tid_in_wg, 1)]))
                Tx.wg.copy_async(reg_wg[:], tmem[:, :BLK_N])
                T.ptx.tcgen05.wait.ld()

                # Signal TMEM free (all 128 threads arrive)
                ld2mma.arrive(0)

                # Cast fp32 -> fp16
                Tx.cast(reg_f16[:], reg[:])

                # Write to Dsmem + TMA store
                Tx.copy(Dsmem[warp_id * 32 + lane_id, :], reg_f16[:])
                T.ptx.fence.proxy_async("shared::cta")
                T.cuda.warpgroup_sync(10)
                if warp_id == 0:
                    if lane_id == 0:
                        Tx.copy_async(D[m_st:m_st+BLK_M, n_st:n_st+BLK_N],
                                      Dsmem[:, :], dispatch="tma_auto")
                        T.ptx.cp_async.bulk.commit_group()
                        T.ptx.cp_async.bulk.wait_group(0)
                T.cuda.warpgroup_sync(10)

                tile_scheduler.next_tile()

        # --- Cleanup ---
        T.cuda.cta_sync()
        if warp_id == 0:
            T.ptx.tcgen05.relinquish_alloc_permit(cta_group=1)
            T.ptx.tcgen05.dealloc(tmem_addr[0], n_cols=512, cta_group=1)

    return kernel

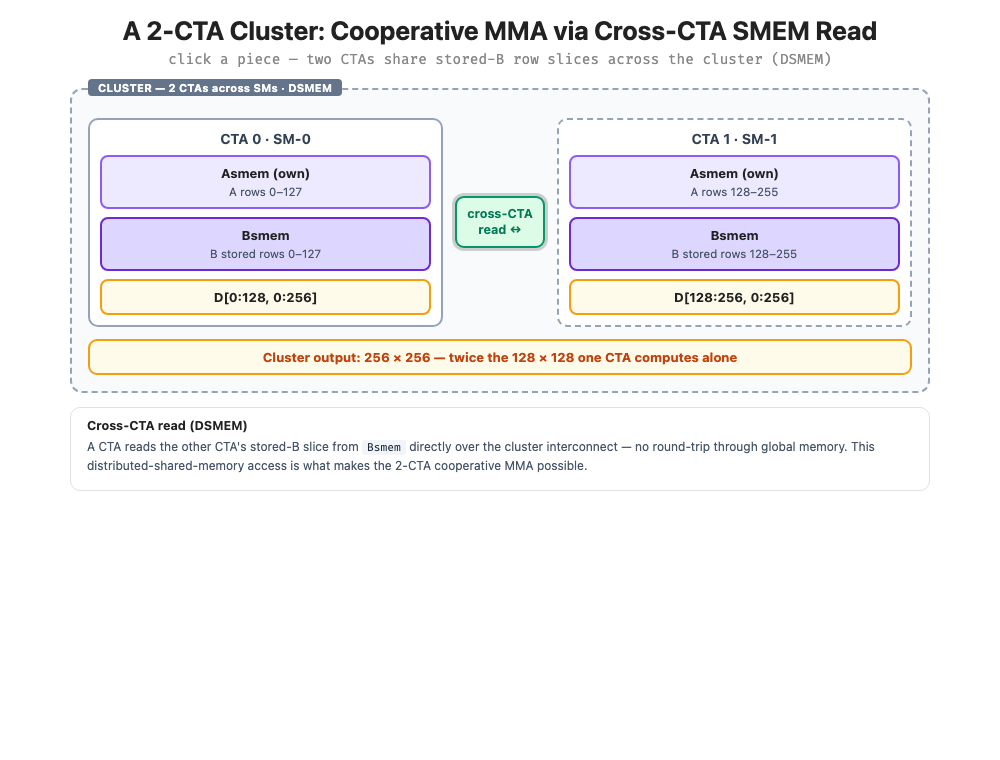

Step 8：两个 CTA 组成 cluster，扩大片上复用半径

Step 8 把合作范围从一个 CTA 扩展到两个 CTA。每个 CTA 仍然加载自己负责的 A/B slice，但 MMA 不再只消费本 CTA 的数据，而是通过 cluster 机制读取 peer CTA 的 shared memory，合作计算一个更大的输出 tile。直观上，输入搬运量约扩大 2 倍，但输出 tile 从 128x128 扩到 256x256，元素数量扩大 4 倍；同一批 staged operands 被用于更多乘加，片上数据复用率提高。

这也是 cta_group=2 的意义：它不是“第 2 个 CTA”的编号，而是告诉 tcgen05/TMA/barrier 这次操作处在双 CTA 协作模式下。配套的 cta_mask=3 表示二进制 11，也就是两个 CTA 都要收到对应的 barrier 到达通知。为了让跨 CTA 的交接更可控，代码会使用 remote_view(0) 把关键到达汇报到 CTA 0 的 barrier 上；例如 ld2mma.init(128 * CTA_GROUP) 在 CTA_GROUP=2 时等待 256 个 writeback 线程到达，确认两个 CTA 都不再使用同一块 TMEM 后，下一轮 MMA 才能复用。

调度器也要跟着从“每个 SM 一个 persistent worker”变成“每个 cluster 一个 persistent worker”。因此 Step 8 中 num_clusters 通常写成 SM_COUNT // CTA_GROUP：一个 cluster 占用两个 CTA 的协作资源，逻辑 worker 数自然按 cluster 数而不是 CTA 数来计算。

完整的kernel实现：

def hgemm_v8(M, N, K):
    a_type = tvm.DataType("float16")
    b_type = tvm.DataType("float16")
    d_type = tvm.DataType("float16")
    acc_type = tvm.DataType("float32")

    CTA_GROUP = 2
    BLK_M, BLK_N, BLK_K = 128, 128, 64
    MMA_M, MMA_N = 256, 256
    K_TILES = K // BLK_K
    PIPE_DEPTH = 4
    WG_NUMBER = 2
    F16_SIZE = 2  # fp16

    A_layout = mma_shared_layout(a_type, SwizzleMode.SWIZZLE_128B_ATOM, (PIPE_DEPTH, BLK_M, BLK_K))
    B_layout = mma_shared_layout(b_type, SwizzleMode.SWIZZLE_128B_ATOM, (PIPE_DEPTH, BLK_N, BLK_K))
    D_layout = mma_shared_layout(d_type, SwizzleMode.SWIZZLE_128B_ATOM, (BLK_M, 128))

    @T.prim_func
    def kernel(
        A: T.Buffer((M, K), a_type),
        B: T.Buffer((N, K), b_type),
        D: T.Buffer((M, N), d_type),
    ):
        T.device_entry()
        bx = T.cta_id([SM_COUNT])
        cbx, cby = T.cta_id_in_cluster([CTA_GROUP, 1])
        wg_id = T.warpgroup_id([WG_NUMBER])
        warp_id = T.warp_id_in_wg([4])
        lane_id = T.lane_id([32])

        # --- Allocation ---
        pool = T.SMEMPool()
        tmem_addr = pool.alloc((1,), "uint32")
        tma2mma = TMABar(pool, PIPE_DEPTH)
        mma2tma = TCGen05Bar(pool, PIPE_DEPTH)
        mma2ld  = TCGen05Bar(pool, 1)
        ld2mma  = MBarrier(pool, 1)
        pool.move_base_to(1024)
        Asmem = pool.alloc((PIPE_DEPTH, BLK_M, BLK_K), a_type, layout=A_layout)
        Bsmem = pool.alloc((PIPE_DEPTH, BLK_N, BLK_K), b_type, layout=B_layout)
        Dsmem = pool.alloc((BLK_M, 128), d_type, layout=D_layout)

        # --- Barrier init ---
        tma2mma.init(1)
        mma2tma.init(1)
        mma2ld.init(1)
        ld2mma.init(128 * CTA_GROUP)  # both CTAs' writeback threads
        pool.commit()

        # --- TMEM alloc (cooperative) ---
        if wg_id == 0:
            if warp_id == 0:
                T.ptx.tcgen05.alloc(T.address_of(tmem_addr), n_cols=512, cta_group=CTA_GROUP)
        T.ptx.fence.proxy_async("shared::cta")
        T.ptx.fence.mbarrier_init()
        T.cuda.cta_sync()

        tmem = T.decl_buffer(
            (128, 512), acc_type, scope="tmem", allocated_addr=tmem_addr[0],
            layout=TileLayout(S[(128, 512) : (1@TLane, 1@TCol)]))

        # --- Tile scheduler (cluster tiles) ---
        tile_scheduler = ClusterPersistentScheduler2D(
            "ts", num_m_tiles=M // 256, num_n_tiles=N // 256,
            l2_group_size=8, num_clusters=SM_COUNT // CTA_GROUP)
        tile_scheduler.init(bx // CTA_GROUP)
        m_idx = T.meta_var(tile_scheduler.m_idx)
        n_idx = T.meta_var(tile_scheduler.n_idx)
        m_st = T.meta_var((m_idx * CTA_GROUP + cbx) * BLK_M)
        n_st = T.meta_var((n_idx * CTA_GROUP + cbx) * BLK_N)

        # --- Cross-CTA barrier view ---
        tma2mma_cta0 = tma2mma.remote_view(0)
        ld2mma_cta0 = ld2mma.remote_view(0)

        # =============================================
        # Warpgroup 1: TMA Producer (warp 3) + MMA Consumer (warp 0)
        # =============================================
        if wg_id == 1:
            if warp_id == 3:
                tma_ps = PipelineState(PIPE_DEPTH, phase=1)

                @T.inline
                def tma_load(k_offset):
                    Tx.copy_async(Asmem[tma_ps.stage, :, :],
                                  A[m_st:m_st+BLK_M, k_offset:k_offset+BLK_K],
                                  dispatch="tma_auto", cta_group=CTA_GROUP,
                                  mbar=tma2mma_cta0.ptr_to([tma_ps.stage]))
                    Tx.copy_async(Bsmem[tma_ps.stage, :, :],
                                  B[n_st:n_st+BLK_N, k_offset:k_offset+BLK_K],
                                  dispatch="tma_auto", cta_group=CTA_GROUP,
                                  mbar=tma2mma_cta0.ptr_to([tma_ps.stage]))

                if T.filter(lane_id, T.ptx.elect_sync()):
                    while tile_scheduler.valid():
                        for k in range(K_TILES):
                            mma2tma.wait(tma_ps.stage, tma_ps.phase)
                            tma_load(k * BLK_K)
                            if cbx == 0:
                                tma2mma_cta0.arrive(tma_ps.stage,
                                    CTA_GROUP * (BLK_M * BLK_K + BLK_N * BLK_K) * F16_SIZE)
                            tma_ps.advance()
                        tile_scheduler.next_tile()

            elif warp_id == 0:
                mma_ps = PipelineState(PIPE_DEPTH, phase=0)
                ld_ps = PipelineState(1, phase=1)

                if cbx == 0:
                    if T.filter(lane_id, T.ptx.elect_sync()):
                        while tile_scheduler.valid():
                            ld2mma.wait(ld_ps.stage, ld_ps.phase)
                            ld_ps.advance()

                            for k in range(K_TILES):
                                tma2mma.wait(mma_ps.stage, mma_ps.phase)
                                Tx.gemm_async(
                                    tmem[:, :MMA_N],
                                    Asmem[mma_ps.stage, :, :],
                                    Bsmem[mma_ps.stage, :, :],
                                    accum=(k != 0), dispatch="tcgen05", cta_group=CTA_GROUP)
                                mma2tma.arrive(mma_ps.stage, cta_group=CTA_GROUP, cta_mask=3)
                                mma_ps.advance()

                            mma2ld.arrive(0, cta_group=CTA_GROUP, cta_mask=3)
                            tile_scheduler.next_tile()

        # =============================================
        # Warpgroup 0: Writeback (256 columns in 2 x 128-column chunks)
        # =============================================
        elif wg_id == 0:
            wb_ps = PipelineState(1, phase=0)
            reg_f16 = T.alloc_local((128,), d_type)

            while tile_scheduler.valid():
                mma2ld.wait(wb_ps.stage, wb_ps.phase)
                wb_ps.advance()
                T.ptx.tcgen05.fence.after_thread_sync()

                for no in T.unroll(2):  # 2 chunks of 128 columns = 256 total
                    reg = T.alloc_local((128,), acc_type)
                    reg_wg = reg.view(128, 128,
                        layout=TileLayout(S[(128, 128) : (1@tid_in_wg, 1)]))
                    Tx.wg.copy_async(reg_wg[:], tmem[:, no * 128:(no + 1) * 128])
                    T.ptx.tcgen05.wait.ld()
                    Tx.cast(reg_f16[:], reg[:])
                    Tx.copy(Dsmem[warp_id * 32 + lane_id, :], reg_f16[:])
                    T.ptx.fence.proxy_async("shared::cta")
                    T.cuda.warpgroup_sync(10)
                    if warp_id == 0:
                        if lane_id == 0:
                            n_st_epi = T.meta_var(n_idx * 256 + no * 128)
                            Tx.copy_async(D[m_st:m_st+BLK_M, n_st_epi:n_st_epi+128],
                                          Dsmem[:, :], dispatch="tma_auto")
                            T.ptx.cp_async.bulk.commit_group()
                            T.ptx.cp_async.bulk.wait_group(0)
                    T.cuda.warpgroup_sync(10)

                ld2mma_cta0.arrive(0)
                tile_scheduler.next_tile()

        # --- Cleanup ---
        T.cuda.cluster_sync()
        if warp_id == 0:
            T.ptx.tcgen05.relinquish_alloc_permit(cta_group=CTA_GROUP)
            T.ptx.tcgen05.dealloc(tmem_addr[0], n_cols=512, cta_group=CTA_GROUP)

    return kernel

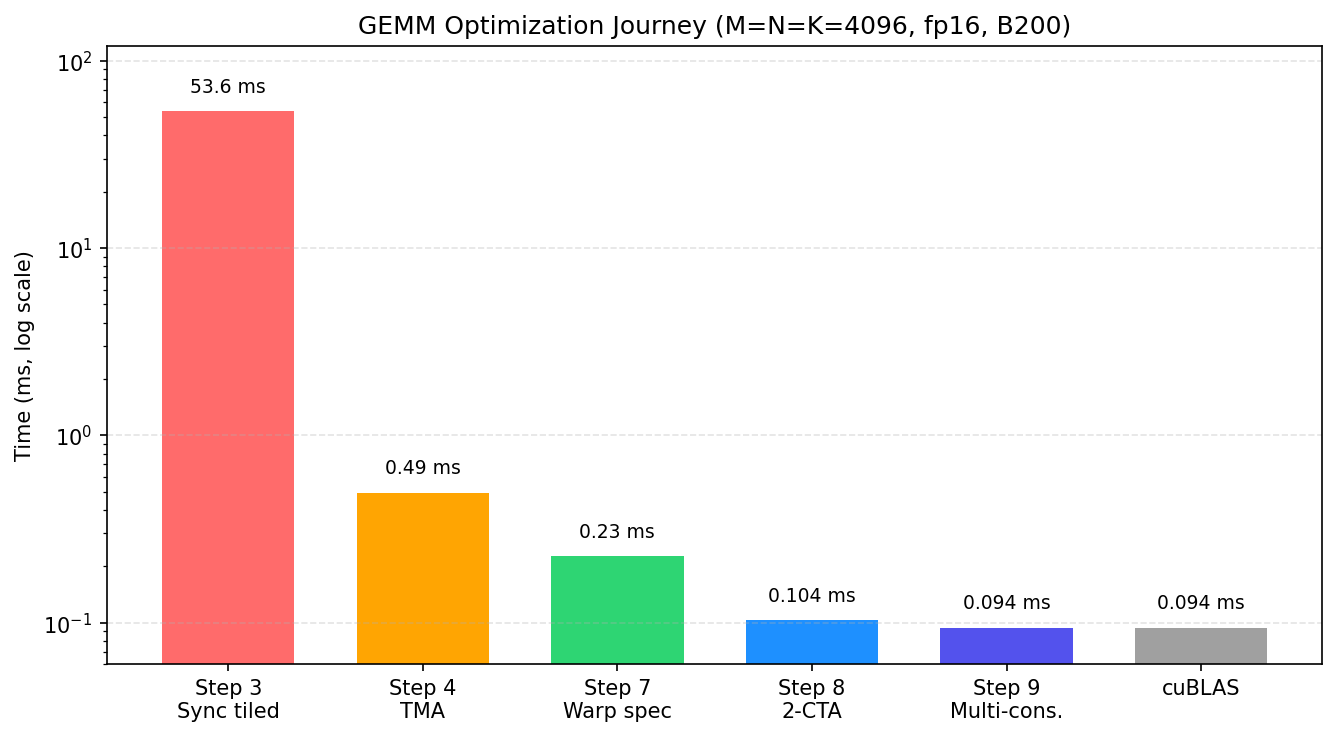

Step 9：增加第二个 MMA consumer，让 B tile 被更多次使用

Step 9 保留 Step 8 的双 CTA cluster，但在 cluster 内增加第二个 MMA consumer。两个 consumer 处理不同的 M 行块，却共享相同的 B tile；cluster 的有效输出从 256x256 进一步扩到 512x256。这一步选择复用 B 而不是 A，是因为两个 consumer 都在计算同一批 N 列上的输出，只是 M 行不同，所以 B 是天然公共输入，而 A 必须随 M 行块变化。

这一步带来的代码复杂度主要体现在资源隔离。两个 consumer 需要不同的 A 起点、不同的 TMEM accumulator 范围，以及不同的 writeback 同步槽位；但它们可以共用同一个 staged B tile。换句话说，Step 9 不是简单地“多开一个算子”，而是在保证 barrier 和 TMEM 生命周期不混淆的前提下，让昂贵的 B 搬运服务更多 MMA。

完整kernel实现参考：

def hgemm_v9(M, N, K):
    a_type = tvm.DataType("float16")
    b_type = tvm.DataType("float16")
    d_type = tvm.DataType("float16")
    acc_type = tvm.DataType("float32")

    CTA_GROUP = 2
    NUM_CONSUMER = 2
    BLK_M, BLK_N, BLK_K = 128, 128, 64
    MMA_N = BLK_N * CTA_GROUP   # 256
    K_TILES = K // BLK_K
    PIPE_DEPTH = 4
    EPI_N = 64
    WG_NUMBER = 3
    F16_SIZE = 2  # fp16

    A_layout = mma_shared_layout(a_type, SwizzleMode.SWIZZLE_128B_ATOM,
                                 (PIPE_DEPTH, NUM_CONSUMER, BLK_M, BLK_K))
    B_layout = mma_shared_layout(b_type, SwizzleMode.SWIZZLE_128B_ATOM,
                                 (PIPE_DEPTH, BLK_N, BLK_K))
    D_layout = mma_shared_layout(d_type, SwizzleMode.SWIZZLE_128B_ATOM,
                                 (NUM_CONSUMER, BLK_M, EPI_N))

    @T.prim_func
    def kernel(
        A: T.Buffer((M, K), a_type),
        B: T.Buffer((N, K), b_type),
        D: T.Buffer((M, N), d_type),
    ):
        T.device_entry()
        bx = T.cta_id([SM_COUNT])
        cbx, cby = T.cta_id_in_cluster([CTA_GROUP, 1])
        wg_id = T.warpgroup_id([WG_NUMBER])
        warp_id = T.warp_id_in_wg([4])
        lane_id = T.lane_id([32])

        # --- Allocation ---
        pool = T.SMEMPool()
        tmem_addr = pool.alloc((1,), "uint32")
        tma2mma = TMABar(pool, PIPE_DEPTH)
        mma2tma = TCGen05Bar(pool, PIPE_DEPTH)
        mma2ld  = TCGen05Bar(pool, NUM_CONSUMER)   # depth=2, one slot per consumer
        ld2mma  = MBarrier(pool, NUM_CONSUMER)     # depth=2, one slot per consumer
        pool.move_base_to(1024)
        Asmem = pool.alloc((PIPE_DEPTH, NUM_CONSUMER, BLK_M, BLK_K), a_type, layout=A_layout)
        Bsmem = pool.alloc((PIPE_DEPTH, BLK_N, BLK_K), b_type, layout=B_layout)
        Dsmem = pool.alloc((NUM_CONSUMER, BLK_M, EPI_N), d_type, layout=D_layout)

        # --- Barrier init ---
        tma2mma.init(1)
        mma2tma.init(NUM_CONSUMER)  # each stage expects 2 arrivals
        mma2ld.init(1)              # each slot gets 1 arrival
        ld2mma.init(128 * CTA_GROUP)  # both CTAs' writeback threads
        pool.commit()

        # --- TMEM alloc (cooperative) ---
        if wg_id == 0:
            if warp_id == 0:
                T.ptx.tcgen05.alloc(T.address_of(tmem_addr), n_cols=512, cta_group=CTA_GROUP)
        T.ptx.fence.proxy_async("shared::cta")
        T.ptx.fence.mbarrier_init()
        T.cuda.cta_sync()

        tmem = T.decl_buffer(
            (128, 512), acc_type, scope="tmem", allocated_addr=tmem_addr[0],
            layout=TileLayout(S[(128, 512) : (1@TLane, 1@TCol)]))

        # --- Tile scheduler (512x256 cluster tiles) ---
        tile_scheduler = ClusterPersistentScheduler2D(
            "ts", num_m_tiles=M // 256 // NUM_CONSUMER, num_n_tiles=N // 256,
            l2_group_size=8, num_clusters=SM_COUNT // CTA_GROUP)
        tile_scheduler.init(bx // CTA_GROUP)
        m_idx = T.meta_var(tile_scheduler.m_idx)
        n_idx = T.meta_var(tile_scheduler.n_idx)
        m_st = T.meta_var((m_idx * NUM_CONSUMER * CTA_GROUP + cbx) * BLK_M)
        n_st = T.meta_var((n_idx * CTA_GROUP + cbx) * BLK_N)

        tma2mma_cta0 = tma2mma.remote_view(0)
        ld2mma_cta0 = ld2mma.remote_view(0)

        # =============================================
        # Warpgroup 2: TMA Producer (warp 3) + 2 MMA Consumers (warp 0, 1)
        # =============================================
        if wg_id == 2:
            if warp_id == 3:
                # === TMA Producer: loads 2 A blocks + 1 B block per stage ===
                tma_ps = PipelineState(PIPE_DEPTH, phase=1)

                @T.inline
                def tma_load(k_offset):
                    m_st_c1 = T.meta_var(m_st + CTA_GROUP * BLK_M)
                    Tx.copy_async(Asmem[tma_ps.stage, 0, :, :],
                                  A[m_st:m_st+BLK_M, k_offset:k_offset+BLK_K],
                                  dispatch="tma_auto", cta_group=CTA_GROUP,
                                  mbar=tma2mma_cta0.ptr_to([tma_ps.stage]))
                    Tx.copy_async(Asmem[tma_ps.stage, 1, :, :],
                                  A[m_st_c1:m_st_c1+BLK_M, k_offset:k_offset+BLK_K],
                                  dispatch="tma_auto", cta_group=CTA_GROUP,
                                  mbar=tma2mma_cta0.ptr_to([tma_ps.stage]))
                    Tx.copy_async(Bsmem[tma_ps.stage, :, :],
                                  B[n_st:n_st+BLK_N, k_offset:k_offset+BLK_K],
                                  dispatch="tma_auto", cta_group=CTA_GROUP,
                                  mbar=tma2mma_cta0.ptr_to([tma_ps.stage]))

                if T.filter(lane_id, T.ptx.elect_sync()):
                    while tile_scheduler.valid():
                        for k in range(K_TILES):
                            mma2tma.wait(tma_ps.stage, tma_ps.phase)
                            tma_load(k * BLK_K)
                            if cbx == 0:
                                tma2mma_cta0.arrive(tma_ps.stage,
                                    CTA_GROUP * (NUM_CONSUMER * BLK_M * BLK_K + BLK_N * BLK_K) * F16_SIZE)
                            tma_ps.advance()
                        tile_scheduler.next_tile()

            elif warp_id < NUM_CONSUMER:
                # === MMA Consumer: warp_id selects A block and TMEM range ===
                mma_ps = PipelineState(PIPE_DEPTH, phase=0)
                ld_ps = PipelineState(1, phase=1)

                if cbx == 0:
                    if T.filter(lane_id, T.ptx.elect_sync()):
                        while tile_scheduler.valid():
                            ld2mma.wait(warp_id, ld_ps.phase)
                            ld_ps.advance()

                            for k in range(K_TILES):
                                tma2mma.wait(mma_ps.stage, mma_ps.phase)
                                Tx.gemm_async(
                                    tmem[:, warp_id * MMA_N:warp_id * MMA_N + MMA_N],
                                    Asmem[mma_ps.stage, warp_id, :, :],
                                    Bsmem[mma_ps.stage, :, :],
                                    accum=(k != 0), dispatch="tcgen05", cta_group=CTA_GROUP)
                                mma2tma.arrive(mma_ps.stage, cta_group=CTA_GROUP, cta_mask=3)
                                mma_ps.advance()

                            mma2ld.arrive(warp_id, cta_group=CTA_GROUP, cta_mask=3)
                            tile_scheduler.next_tile()

        # =============================================
        # Warpgroup 0/1: Writeback (each reads its consumer's TMEM range)
        # =============================================
        elif wg_id < NUM_CONSUMER:
            wb_ps = PipelineState(1, phase=0)
            reg_f16 = T.alloc_local((EPI_N,), d_type)

            while tile_scheduler.valid():
                mma2ld.wait(wg_id, wb_ps.phase)  # wait for THIS consumer
                wb_ps.advance()
                T.ptx.tcgen05.fence.after_thread_sync()

                # Read TMEM in EPI_N=64 column chunks (4 iterations for 256 cols)
                for i in T.unroll(MMA_N // EPI_N):
                    reg = T.alloc_local((EPI_N,), acc_type)
                    reg_wg = reg.view(128, EPI_N,
                        layout=TileLayout(S[(128, EPI_N) : (1@tid_in_wg, 1)]))
                    col_st = T.meta_var(wg_id * MMA_N + i * EPI_N)
                    col_end = T.meta_var(wg_id * MMA_N + i * EPI_N + EPI_N)
                    Tx.wg.copy_async(reg_wg[:], tmem[:, col_st:col_end])
                    T.ptx.tcgen05.wait.ld()
                    Tx.cast(reg_f16[:], reg[:])
                    Tx.copy(Dsmem[wg_id, warp_id * 32 + lane_id, :], reg_f16[:])
                    T.ptx.fence.proxy_async("shared::cta")
                    T.cuda.warpgroup_sync(wg_id + 10)
                    if warp_id == 0:
                        if lane_id == 0:
                            m_st_epi = T.meta_var(
                                (m_idx * NUM_CONSUMER * CTA_GROUP + wg_id * CTA_GROUP + cbx) * BLK_M)
                            n_st_epi = T.meta_var(n_idx * MMA_N + i * EPI_N)
                            Tx.copy_async(
                                D[m_st_epi:m_st_epi+BLK_M, n_st_epi:n_st_epi+EPI_N],
                                Dsmem[wg_id, :, :], dispatch="tma_auto")
                            T.ptx.cp_async.bulk.commit_group()
                            T.ptx.cp_async.bulk.wait_group(0)
                    T.cuda.warpgroup_sync(wg_id + 10)

                ld2mma_cta0.arrive(wg_id)
                tile_scheduler.next_tile()

        # --- Cleanup ---
        T.cuda.cluster_sync()
        if warp_id == 0:
            T.ptx.tcgen05.relinquish_alloc_permit(cta_group=CTA_GROUP)
            T.ptx.tcgen05.dealloc(tmem_addr[0], n_cols=512, cta_group=CTA_GROUP)

    return kernel

性能对比

在 NVIDIA B200 上测试 M=N=K=4096、fp16 输入、锁频、每个版本 1,000 次计时。结果显示，最终 Step 9 与 cuBLAS reference 达到同样的 0.094 ms。

版本	关键机制	耗时	相对 Step 1
Step 1	同步 load 加 MMA	70 ms	1x
Step 3	空间 tiling 覆盖完整矩阵	53.6 ms	约 1.3x
Step 4	TMA 异步搬运	0.49 ms	约 142x
Step 7	persistent scheduler 加 warp specialization	0.23 ms	约 309x
Step 8	two-CTA cluster cooperative MMA	0.104 ms	约 676x
Step 9	multi-consumer 复用 B tile	0.094 ms	约 744x
cuBLAS	参考实现	0.094 ms	约 744x

总结

从局部增益看，Step 4 到 Step 7 主要靠软件流水、persistent scheduling 和 warp specialization，把 TMA 搬运、Tensor Core 计算、writeback 真正错开；Step 7 到 Step 8 靠 cluster 扩大 A/B operand 的复用半径；Step 8 到 Step 9 则靠第二个 consumer 进一步摊薄 B tile 的搬运成本。最终性能接近 cuBLAS，不是因为某一条指令神奇地快，而是因为数据移动、执行重叠和片上复用三件事同时对齐了。

Tirx 的实现分析主要看三点：

第一，看 Scope：每个分支到底由哪个 warp、哪个 warpgroup、哪个 CTA 或哪个 cluster 执行。很多同步语句的含义都取决于“谁会到达这里”，例如 warpgroup_sync(10) 只对实际执行到该分支的 128 个线程成立。

第二，看 Layout：SMEM stage、TMEM accumulator、每线程寄存器视图并不是普通数组，它们描述的是硬件资源如何被线程集合共同解释。理解 layout，才能解释为什么每个线程只持有一小段寄存器，却能 collectively 表示完整 tile。

第三，看 Dispatch：Tx.copy、Tx.gemm_async、barrier arrive/wait 这些 TIRx 写法背后分别对应 TMA、tcgen05 和 mbarrier/命名 barrier。高级 GEMM kernel 的核心不是把这些 API 串起来，而是让每条硬件路径在正确的 scope 和生命周期里运行。

因此，这一章真正展示的是 Blackwell GEMM 优化的系统性：TMA 解决供数方式，warp specialization 解决时间重叠，cluster 解决跨 CTA 复用，multi-consumer 解决同一 operand 的更高复用密度。把这些层次连起来看，才能理解一个 kernel 如何一步步逼近工业级 GEMM 实现。
